Restoring Missing Room Labels


Reference Number: KB-00157
Last Modified: July 26, 2022

The information in this article appliesto:

Home Designer Professional or Home Designer Architectural or HomeDesigner Suite



QUESTION

My floor plan used to display room labels, but now I no longer see them. How do I restore these labels?


ANSWER

There are several reasons as to why room labels might not display in a plan:

  • A Room Type hasn't been properly specified;
  • Their display has been turned off;
  • They have been deleted.


To create room labels

  1. Open the plan that you would like to create room labels


  2. Using the Select Objects button, click in a room to select it, then select the Open Object edit button.


  3. On the General panel of the Room Specification dialog, select a Room Type using the drop-down menu located at the top, and ensure that the Show Room Label box is checked.

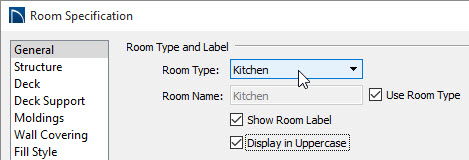

    Choosing a Room Type using the drop-down in the Room Specification dialog


  4. Click OK to close the dialog. The selected room type should now display a label in floor plan view.If it does not, please proceed to the next section.


To toggle the display of all room labels

  1. From the menu, select Tools> Display Options .


  2. In the Layer Display Options dialog, locate the "Room Labels" layer, then click to place a check in the Disp column for this layer.

    Alternatively. if you don't want to see your room labels, remove the check from the Disp column for this layer.

    Checking the "Room Labels" layer in the Display Options dialog



  3. Click OK to close the dialog. All defined rooms in the plan should now display labels. If they don't, please proceed to the next section.


To restore deleted or missing room labels

  1. Using the Select Objects tool, click in a room that is not displaying a label to select it, then click the Open Object edit button.


  2. On the General panel of the Room Specification dialog, check the Show Room Label box, then click OK.

    Checking the Show Room Label box in the Room Specification dialog


  3. The room label will display in floor plan view once again. Repeat this process for any other rooms that are not displaying labels.
