Locating the Rendering Log


Reference Number: KB-03149
Last Modified: June 4, 2021

The information in this article applies to:

Chief Architect Premier or Chief Architect Interiors

Home Designer Professional or Home Designer Architectural or Home Designer Suite



QUESTION

The Chief Architect Technical Support team requested that I send in the program's Rendering Log file. How do I find this file?


ANSWER

The Rendering Log for Chief Architect software contains information that can help Chief Architect Technical Support determine the cause of 3D/Camera problems experienced within the software. In this article we will show you where to find the Rendering Log for your particular system.

Note: The Rendering Log file is only available in Chief Architect X13, Home Designer 2022, and newer program versions.


To locate the Rendering Log in Microsoft Windows

  1. On your keyboard, press the Windows  key and the letter R at the same time.


  2. In the Run dialog that appears, type %localappdata% and click OK.

    Run dialog with %localappdata% entered in the Open field


  3. This will open a new File Explorer window to the \AppData\Local folder on your system.


  4. Open the file folder corresponding to your product, and inside you will see a text file named Rendering Log.txt.


  5. Open the Rendering Log and select File> Save As from the menu, then save a copy of the log to your Desktop.


  6. Send this file to Technical Support using the Online Support Center.

Return To Top


To locate the Rendering Log in Apple macOS

  1. Open Finder and select Go> Go to folder from the menu.


  2. In the Go to Folder window that appears, type ~/Library/Application Support and click Go.

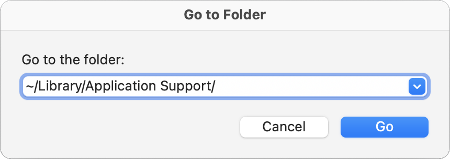

    Goto Folder dialog with ~/Library/Application Support/ entered in the field


  3. This will open a new Finder window to the Application Support folder of the current user.


  4. Open the file folder corresponding to your product, and inside you will see a text file named Rendering Log.txt.


  5. Open the Rendering Log and select File> Save As from the menu, then save a copy of the log to your Desktop.


  6. Send this file to Technical Support using the Online Support Center.
