Troubleshooting Framing Issues in Home Designer

DESCRIPTION

Some walls, floors, ceilings, and roofs are not generating framing. Why is this, and how do I resolve this issue?

RESOLUTION

In Home Designer 2026 and newer, as well as in Home Designer Pro 2025 and prior, there are a few settings that may cause incorrect or no framing to generate.

Floor framing for the first floor will not generate without the presence of a foundation. If a foundation has been generated, floor and ceiling framing may not generate if certain attributes located within the Room Specification dialog are not checked or if the Floor and/or Ceiling Structure is defined incorrectly.

Wall framing will not regenerate if Retain Wall Framing is turned on or if the framing layer of the wall is not specified as framing.

Roof framing will not regenerate if Retain Roof Framing is turned on.

To ensure that floor and ceiling framing generates properly

1. If you're unable to create floor framing for your first floor, you likely have not generated a foundation. Navigate to Build> Floor> Build Foundation  and generate a foundation for your structure.



2. If you're encountering other issues with floor and/or ceiling framing and a foundation has been created, determine the area or room in which your structure is not framing correctly. Using the Select Objects  tool, click to select the room, then click on the Open Object  edit tool.

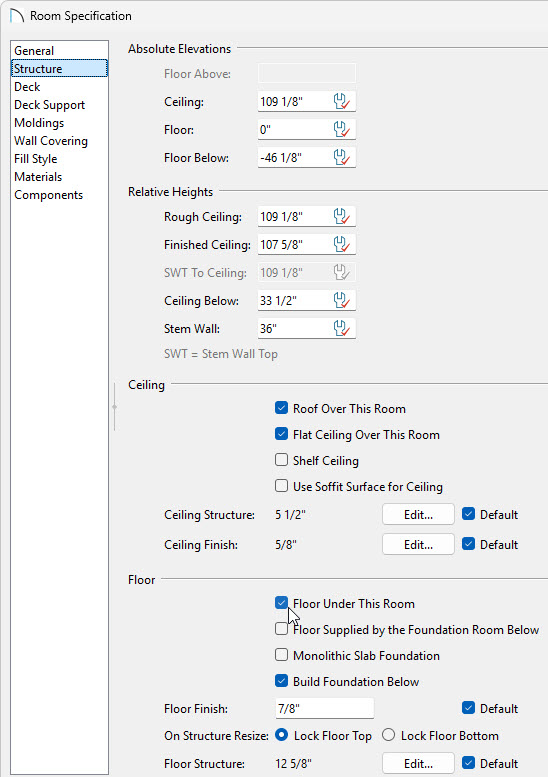

3. On the Structure panel of the Room Specification dialog that displays, ensure that Roof Over This Room and Flat Ceiling Over This Room are checked, as well as Floor Under This Room.

   If Flat Ceiling Over This Room is unchecked, the ceiling will follow the pitch of the roof, unless custom ceiling planes have been created.

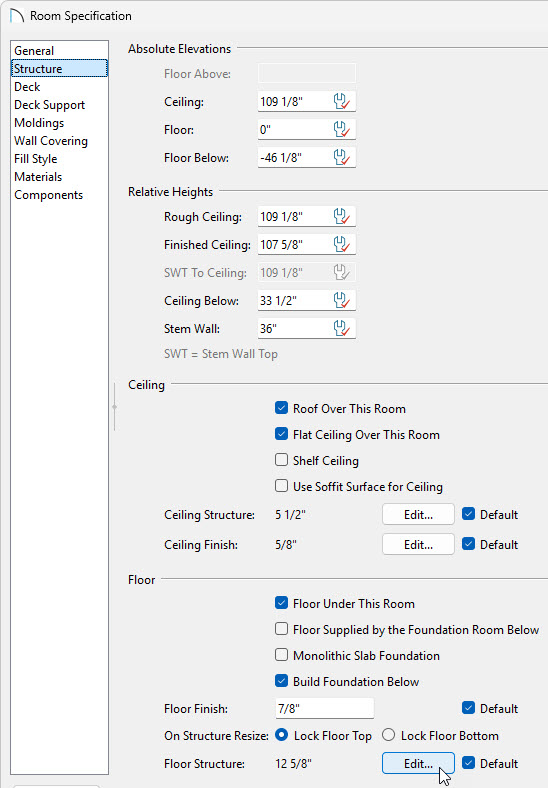

4. Next, verify that the Floor Structure and Ceiling Structure are defined correctly by selecting the Edit button.

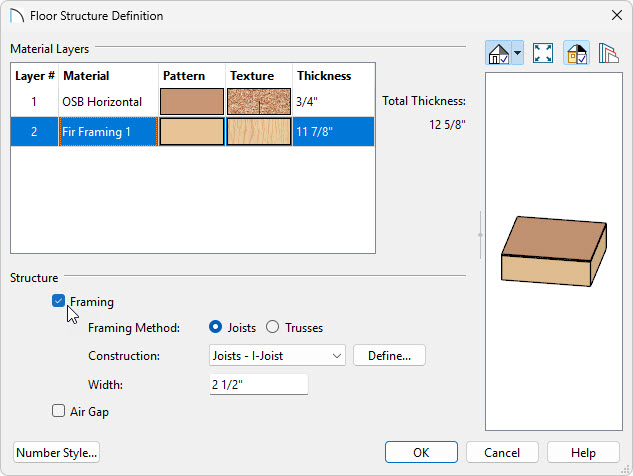

5. In the Floor/Ceiling Structure Definitions dialog(s), ensure that a framing layer is present with the Framing box checked, and that the correct Thickness is set.





   Note: If floor and ceiling framing is not generating correctly for specific room types, an entire floor, or for the entire plan, it's possible that the Floor and Ceiling Structure were set incorrectly within the Default Settings. Navigate to Edit> Default Settings and expand the Floors and Rooms category to adjust the Floor and Ceiling Structure for the appropriate room type, floor level, or entire plan.

   Changes made to the Floor and Ceiling Structure defaults are dynamic and will apply to the plan automatically as long as the "Default" box is checked in the Room Specification dialog for the Floor/Ceiling Structure setting(s).



6. Click OK to confirm the changes, then navigate to Build> Framing> Build Framing to rebuild your floor and ceiling framing.



   For more information on generating framing in Home Designer, please see the appropriate resource in the Related Articles section below.

To ensure wall framing generates properly

1. Using the Select Objects tool, select the wall that is not generating framing properly, then click the Open Object edit tool.

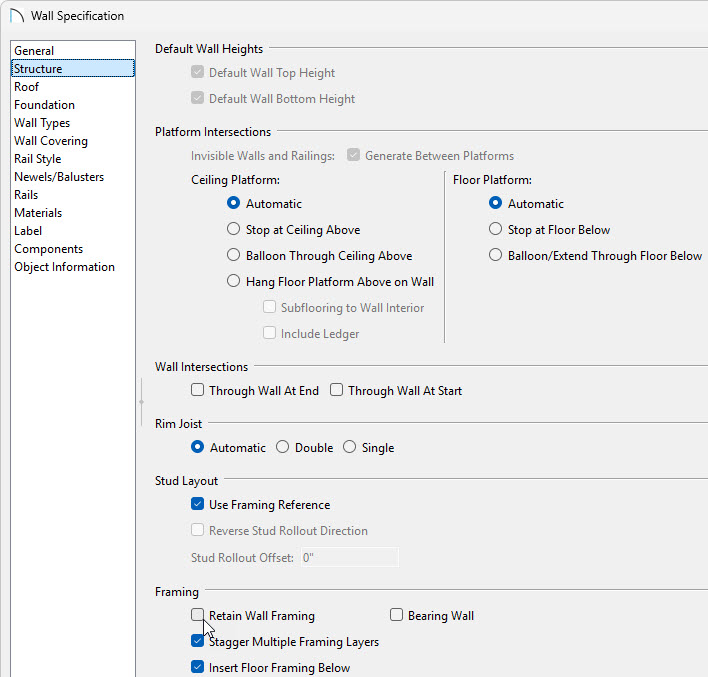

2. On the Structure panel of the Wall Specification dialog that opens, verify that Retain Wall Framing is not checked.

   If this box is checked, the program will not update the framing for this particular wall when framing is rebuilt.



   Retain Framing is also a checkbox you can find in a Roof Plane Specification. If you're having trouble with your roof framing not rebuilding, open your Roof Plane Specification, go to the Structure panel, and verify that Retain Roof Framing is not checked.

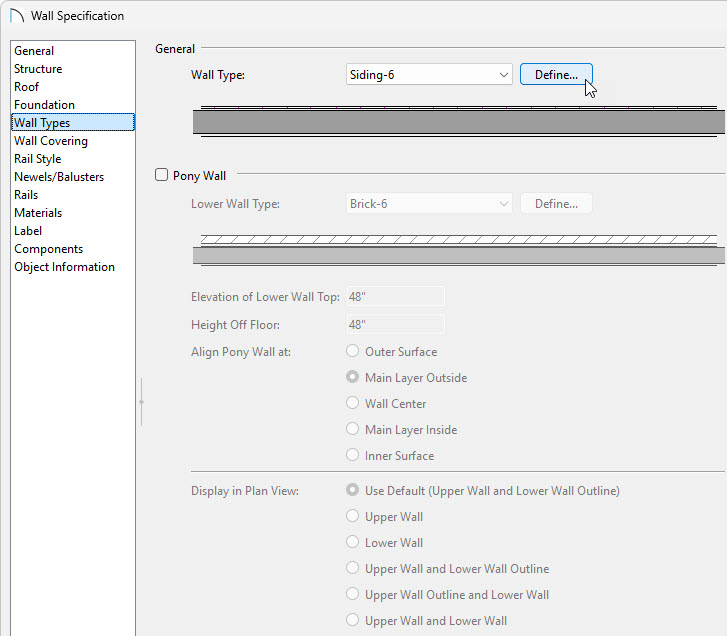

3. Switch to the Wall Types panel and click the Define button next to the Wall Type drop-down menu.

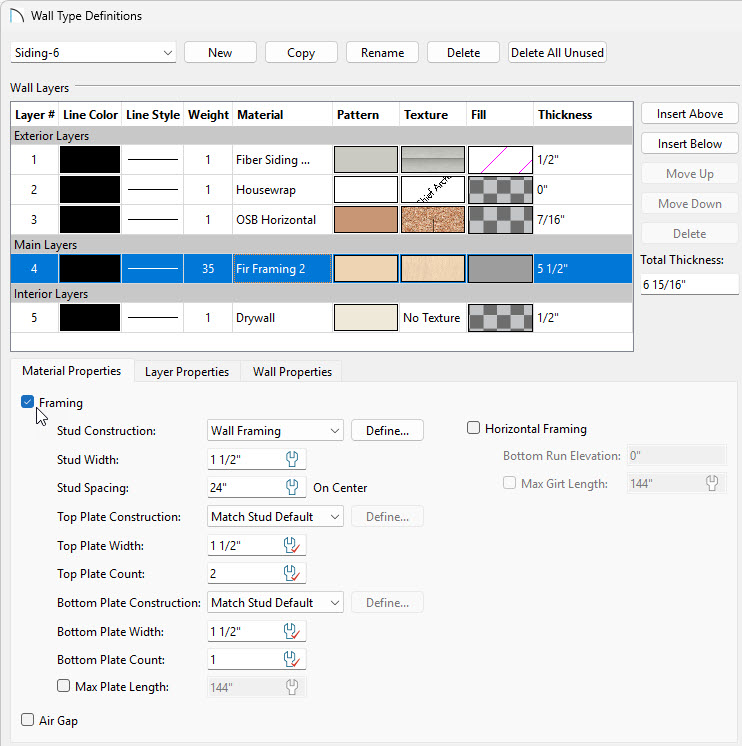

4. In the Wall Type Definition dialog that displays, select the framing layer of the wall and verify that the layer has the Framing box checked on the Material Properties tab or within the Material Layer section.





5. Click OK on both dialogs to confirm the changes, then navigate to Build> Framing> Build Framing to rebuild your wall framing.
