Creating Staircases Connected by Landings


Reference Number: KB-00263
Last Modified: July 21, 2021

The information in this article applies to:

Home Designer Professional or Home Designer Architectural or HomeDesigner Suite



QUESTION

I would like to draw two staircases and connect them with a landing. How do I accomplish this?

L-shaped stair in foyer


ANSWER

Stairs with landings can be manually drawn or placed using the L-Shaped and U-Shaped stair tools.


To create stairs with the L-Shaped Stair tool

  1. Select Build> Stairs> L-Shaped Stair from the menu.


  2. In the New Shaped Staircase dialog that opens, choose the direction for the stair to generate, Clockwise or Counterclockwise, click Make Winders if you want the landing split into winders, then click OK.

    New Shaped Staircase specification dialog for L-shaped stairs

    Note: The U-Shaped Stairs section only applies when using the U-Shaped Stair tool. It can be ignored when creating L-shaped stairs.

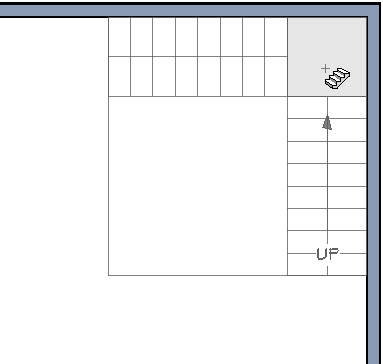

  3. A feedback shadow of an L-shaped stair will be attached to the cursor.

    L-shaped staircase connected to cursor

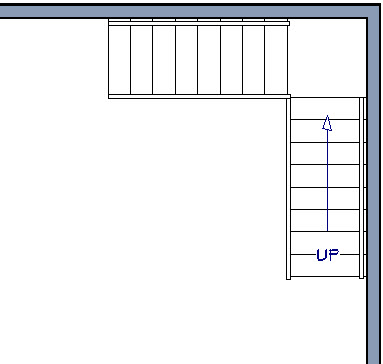

  4. Move the cursor until the feedback shadow is in the location desired for the stairs, then left-click with the mouse to place the stairs in that location.

    L-shaped staircase placed into a plan


To create stairs with the U-Shaped Stair tool

  1. Select Build> Stairs> U-Shaped Stair from the menu.


  2. In the New Shaped Staircase dialog that opens:

    New Shaped Staircase dialog for U-shaped stairs

    • Choose the direction for the stair to generate, Clockwise or Counterclockwise.

    • Click Make Winders if you'd like the landing split into winders.

    • Specify a value for the Gap that will generate between the two sets of stairs.

    • Select Split Landing if you want the landing split in half.

    • Click OK to apply the changes.

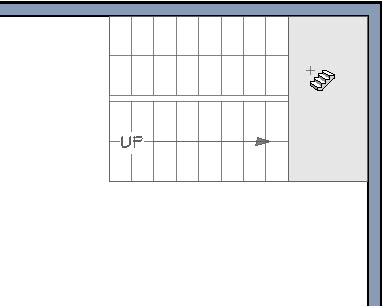

  3. A feedback shadow of a U-shaped stair will be attached to the cursor.

    U-shaped staircase following the cursor

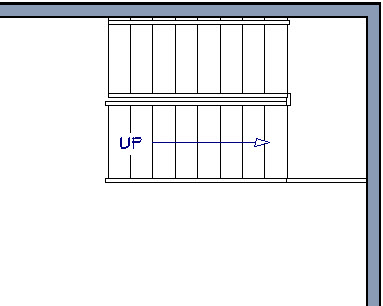

  4. Move the cursor until the feedback shadow is in the location desired for the stairs, then left-click with the mouse to place the stairs in that location.

    U-shaped staircase placed into a plan


To create an L-shaped stair using the Draw Stairs tool

  1. Select Build> Stairs> Draw Stairs fromthe menu, then click and drag to create the first section of the stairs.


  2. Release the mouse button at the approximate location where you would like this stair section to join the landing.

    Stairs drawn with the Draw Stairs tool

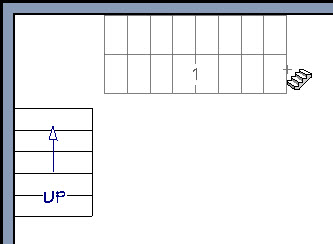

  3. With the Draw Stairs tool still selected, click and drag to create a second stair section.

    Two sets of stairs drawn perpendicular to each other

    • Begin at the approximate location where this stair section will meet the landing.

    • Be sure to draw the second staircase away from the first staircase.

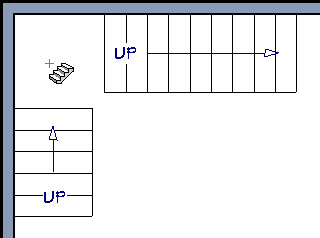

  4. With the Draw Stairs toolstill active, place your cursor in the area between the end of the first stair and the beginning of the second and click once.

    Draw Stairs tool placed in the location where the landing will be created


  5. The program will create a landing between the two stair sections at a logical height and will make slight adjustments to the stair locations, if needed, to produce a finished result.

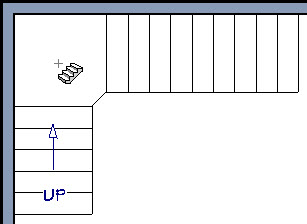

    Landing created using the Draw Stairs tool


Stairs do not need to be drawn at right angles to create a landing between them. You can also create a U-shaped landing using this procedure.


To create a U-shaped staircase with the Draw Stairs tool

  1. Select Build> Stairs> Draw Stairs and,starting at the low point of the stairs, click and drag to draw the stairs going up.

    Single staircase drawn in a plan


  2. Next, draw your second stair section beside the first going in the opposite direction to create the second half of the U shape.

    Second staircase drawn in the opposite direction

    Note that the UP indicators show which direction each staircase is going.


  3. Click at the top where the landing should be to create a landing connecting them both.

    Draw Stairs cursor in the position where the landing will be created


  4. A U-shaped staircase, with both sections connected with a landing is created.

    U-shaped staircase created manually
