Creating an Architectural Block


Reference Number: KB-00191
Last Modified: July 21, 2021

The information in this article applies to:

Home Designer Professional or Home Designer Architectural



QUESTION

I have a configuration of symbols, such as cabinets, that I want to be able to group together to move, or add to my Library Browser to use in future plans. How can I create a block out of these symbols?

Architectural block consisting of cabinets, benches, tables, and other objects


ANSWER

Group multiple items together and block them into a single object using the Make Architectural Block edit tool


To create an Architectural Block

  1. Using the Select Objects tool, drag a marquee around the objects you want to group select.

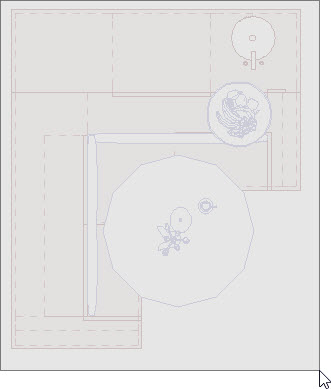

    Selection marquee encompassing a group of objects in a floor plan view


  2. Once you have done so, you will see that all of the objects are selectedas shown below.

    Multiple objects selected at once


  3. After a number of objects have been group-selected, a single item within the group can be deselected by holding down the Ctrl/Command key on your keyboard and clicking on that single item.

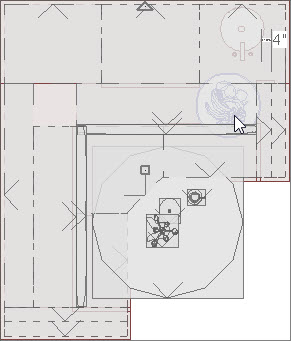

    Deselecting an object from the group selection

    In this example, the bowl of fruit in the image above is no longer included in the selection.


  4. Now that you have the desired items selected, click on the Make Architectural Block edit tool.


Although you cannot use a marquee to select multiple objects in 3D camera views, you can hold down the Shift key and click on each item individually to group select multiple objects in 3D views.

Group selecting objects in a 3D camera view

The number of currently selected objects will display at the lower left of the status bar, as in the image above.



To add the Architectural Block to the Library

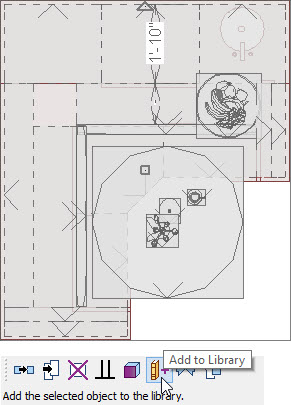

  1. Once you've created your Architectural Block, click on the Add to Library edit tool.

    If you click the Add to Library edit tool before creating the architectural block, all of the individual elements will be added to your User Catalog separately.


  2. You can now right-click on the Architectural Block that was just added and choose to Rename it.

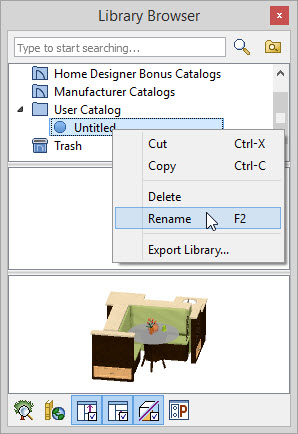

    Rename an item in the User Catalog by right-clicking on it and selecting Rename

    You can also create a folder in your User Catalog for your Architectural Block configurations, and use these in future plans.

  3. After you've placed the Architectural Block from the library into your plan, you can select it and click on the Explode Architectural Block edit tool  if you need to make modifications to individual elements.


  4. After you've made your desired changes, you can re-block the items, and add the new configuration to the library using the steps outlined above.
