Controlling Floor and Ceiling Heights

Reference Number: KB-00140
Last Modified: July 5, 2019

The information in this article applies to:

Home Designer Professional or Home Designer Architectural or Home Designer Suite or Home Designer Interiors


What is the best way to set floor and ceiling heights in my split level, or multilevel plan?


There are a few basic concepts to bear in mind when setting floor and ceiling heights in a plan, especially when creating a split level type design.

  • You can set the ceiling height for an entire floor in the Floor Defaults dialog, then make any necessary changes on a room-by-room basis.

  • Floor and ceiling heights can be altered at any time; but it's best to wait until you have created all the floors in your plan before changing individual rooms.

  • You should finalize all floor and ceiling heights before building the roof.

To specify a default ceiling height

  1. Select Edit> Default Settings  from the menu, and in the Default Settings dialog, expand the Floors and Rooms category, select Current Floor, and click the Edit button.

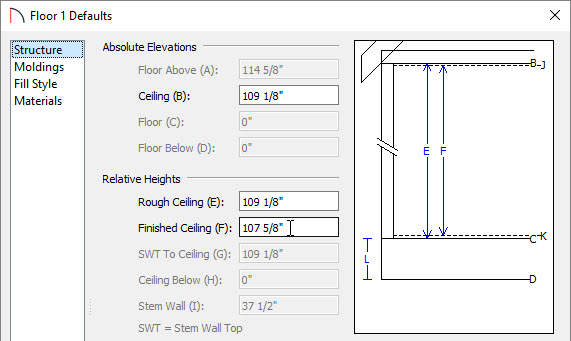

  2. In the Floor 1 Defaults dialog, select the structure panel, and specify the desired value for the Ceiling for the rooms on the first floor.

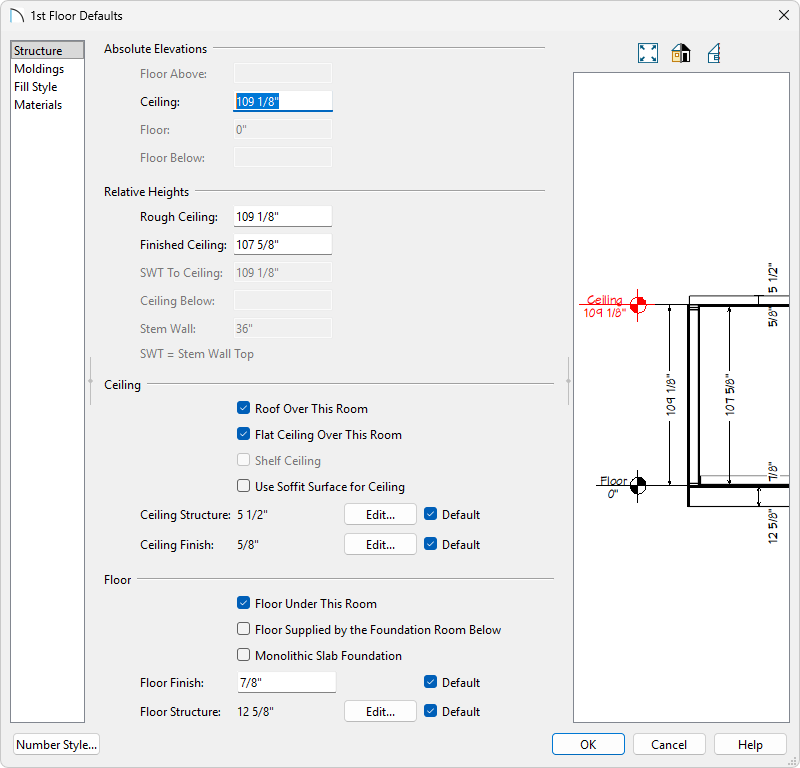

    Setting First Floor Default Heights

    • Specify the height of the tallest ceilings on this floor, but ignore the ceiling heights of any rooms that will extend into the floor above, such as a vaulted entry area.

    • For example, if your living room, dining room and kitchen will have  9' ceilings while a powder room and hallway will be only 8' high and the entry, 18' high, specify the default Ceiling as 9'.

    • Click OK to apply these changes and close the dialog, then click Done to close the Default Settings dialog.

Now that you have set up your defaults, you are ready to begin drawing our basic plan.

To draw the basic plan

  1. Click the Select Objects  button, then click in a room select it.

  2. Click the Open Object  edit button to open the Room Specification dialog, and on the Structure panel, notice that the default ceiling height that you specified is used. Click Cancel to close the dialog.

  3. Select 3D> Create Camera View> Doll House View  to see the current floor in 3D.

    Room with the same ceiling height

To raise a single room's ceiling height

While it is not recommended that you change a room's ceiling height when additional floors have yet to be created, we will do so in this example to illustrate how this change will affect the model. For this part of the tutorial, start a New Plan and create a basic rectangular structure.

  1. Select Build> Wall> Straight Interior Wall , and click and drag two walls to create three separate rooms.

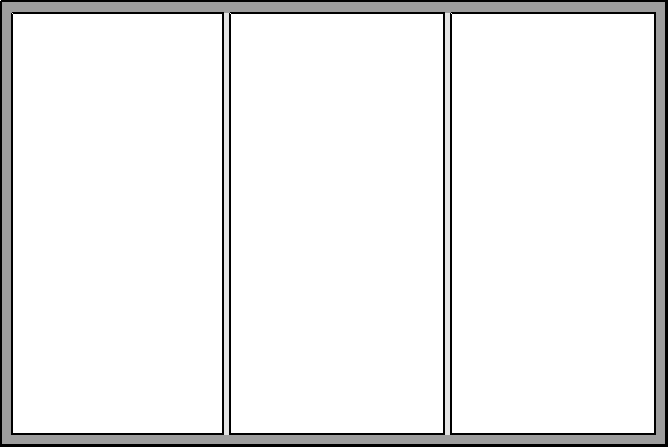

    Dividing the room into three smaller rooms

  2. Click the Select Objects  button, click in one of the rooms to select it, and click the Open Object  edit button

  3. On the Structure panel of the Room Specification dialog that opens, increase the Ceiling value.

    For the purposes of this example, raise it to 11' (132").

  4. Select 3D> Create Camera View> Doll House View  to see the results.

    Increasing the ceiling height raises the walls

To lower a single room's ceiling height

Again, you are changing ceiling heights only to illustrate the effect on the model.

  1. While still in the Doll House View, click the Select Objects  button, click in a different room to select it, and click the Open Object  edit button.

  2. On the Structure panel of the Room Specification dialog that displays, decrease the Ceiling value and click OK

    For the purposes of our example, we will set it to 7' (84").

  3. In a Doll House View , you can see how this change affects the walls.

    Lowering the ceiling height shortens the walls for that room

To create a new floor

  1. Close the 3D view to return to floor plan view and select Build> Floor> Build New Floor  from the menu.

  2. In the New Floor dialog, select Derive 2nd floor plan from the 1st Floor plan and click OK.

    A new floor is created with exterior walls directly above those on the floor below.

  3. Go Down One Floor  and create a Doll House View .  Notice that the program has restored the default ceiling height to the rooms on this floor.

  4. Close the 3D view to return to floor plan view, then go Up One Floor  to the new Floor 2.

  5. Just as on Floor 1, select Edit> Default Settings  from the menu and open the Floor Defaults dialog for Floor 2.

    • Specify the desired default Ceiling for Floor 2, then click OK.

Note: If you specify a different Floor Height, the default Ceiling Height of the floor below will be affected.

To create a stepped floor platform

When all of your floors are in place with the correct default heights, you can make changes to individual rooms.  In this example, we will raise the floor of a room on Floor 2 and increase the ceiling height of the room below as a result.

  1. Select Tools> Floor/Reference Display> Reference Display  from the menu to turn on the Reference Display, which allows you to see the position of objects on the floor below by displaying them in red.

    In Home Designer 2019 and prior product versions, navigate to Tools> Reference Floors> Reference Floor Display .

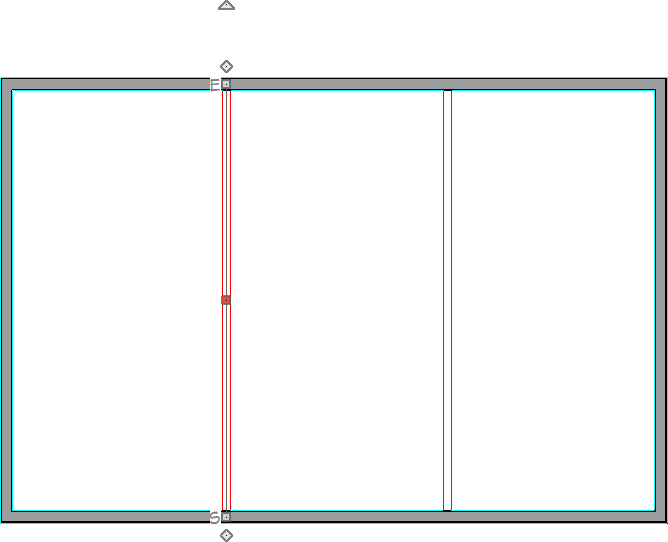

  2. Select Build> Railing and Deck> Straight Railing  from the menu, then click and drag a railing over one of the interior walls on Floor 1.

  3. Click the Select Objects  button, click on the railing to select it, and click the Open Object  edit button.

  4. On the General panel of the Wall Specification dialog, check the box beside Invisible, then click OK.

  5. If an option to Align with Wall Below  is available on the edit toolbar, click on it to align the walls.

  6. Click in the small room created by the railing and click the Open Object  edit button.

  7. On the Structure panel of the Room Specification dialog, increase the value of the Floor Height and click OK.

  8. You can see the results by selecting 3D> Create Camera View> Camera  from the menu and clicking and dragging a camera in the larger room, towards the railing.

    Creating a raised platform in a room

  9. If you return to floor plan view and go Down One Floor , you can open the Room Specification dialog for the room directly below the one with the raised floor and see that its Ceiling Height has been adjusted upward.
