Creating a DWG or DXF File


Reference Number: KB-00111
Last Modified: April 22, 2019

The information in this article applies to:

Home Designer Professional or Home Designer Architectural or Home Designer Suite



QUESTION

How do I convert my plan to a file format that an AutoCAD user can read?


ANSWER

Line-based 2D files can be exported from Home Designer Suite, Home Designer Architectural and Home Designer Pro by navigating to File> Export and choosing the Export Current View or Export All Floors option.

You can specify the version of AutoCAD to export to, however, compatibility with other software may vary.


To create a DWG or DXF File

  1. First, launch Home Designer and Open  the .plan file that you want to export.


  2. Select File> Export> Current View (DWG, DXF)  or File> Export> Export All Floors (DWG, DXF)  from the menu to display the Export Drawing dialog.

    Home Designer 2019 and prior program versions can only export to the .dxf file format.


  3. In the Export Drawing dialog, choose a compatible AutoCAD version, then select Export.

    Note: If you will be sending this file to someone using an older version of AutoCAD, find out which version they have and select it from the drop-down menu here before exporting.

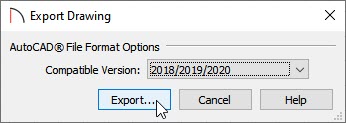

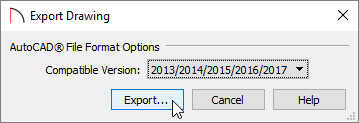

    Export Drawing dialog where the comaptible AutoCAD version can be specified


    In Home Designer Pro, a few additional options are available. You can learn more about each of these options by clicking the Help button at the bottom.

    Export Drawing dialog in Home Designer Professional


  4. In the Save Drawing File dialog that appears next, navigate to the location on your computer where you would like to save your file. In the File name field, or the Save As field if you are on a Mac, enter a name for the file. Choose to save the file as a .dwg or .dxf using the Save as type drop-down.

    Save Drawing File dialog where a location, name, and file type can be chosen


  5. Click the Save button to close the dialog and the file will be saved on your computer under the name and location that you have chosen.
